- Size: 1
- Place of Origin: 1
- Brand Name: YIKE
- Model Number: 0.24-0.61mmx1250mm
- Weight: 1.000 kg

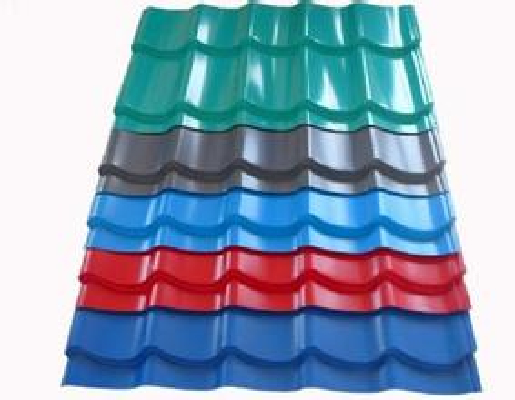

Color-coated Steel Sheet use hot galvanized steel sheet, zinc and iron in hot galvanized sheet as substrate, after the surface pretreatment, using method of roller coated with a layer or multilayer liquid coatings, forming after baking and cooling. Used by coating with polyester 、 silicone modified polyester 、 high durability polyester 、 Polyvinylidene fluoride 、 epoxy and high corrosion resistance coatings and other coatings, with strong durability, corrosion resistance and formability. Widely used in construction, transportation, household appliances, solar energy, furniture and other industries. Home appliance industry is mainly used in the production of shell of the refrigerator, DVD, air conditioning, refrigerator, washing machine and so on.
The purpose of product: Coated steel sheet has a light weight, beautiful and good anti-corrosion performance, it’s can also be processed directly, It provides construction, shipbuilding, automobile manufacturing, furniture industry, electrical industry, etc with a new type of raw materials, have a good effect to replace the wood with steel 、 efficient construction 、 save energy and prevent pollution.
| 1# color coated unit | 2# color coated unit | color coated printing unit | |||
The unit type | Two coating and drying | Two coating and drying | Multicolor printing | |||
Substrate type | Hot dip galvanized, zinc plating aluminum, zinc alloy | Hot dip galvanized, zinc plating aluminum, zinc alloy | Hot dip galvanized, zinc plating aluminum, zinc alloy, The cold plate, PCM pre-coating plate, Electric galvanized, Aluminum plate, Stainless steel | |||
The unit speed | 120m/min | 120m/min | 60m/min | |||
Thickness (mm) | 0.2-1.2 | 0.2-1.2 | 0.2-1.0 | |||
Width (mm) | 900-1250 | 900-1250 | 600-1450 | |||
The diameter of steel coil (mm) | 508-610 | 508-610 | 508-610 | |||
The largest volume weight (ton) | 10 | 10 | 10 | |||
Coating types | Epoxy, polyester, Silicone modified polyester, High resistance to polyester, polyvinylidene fluoride , PU special plate | Epoxy, polyester, Silicone modified polyester, High resistance to polyester, polyvinylidene fluoride Cold cover protective film, PU special plate | Positive thermal glue coated, Cold cover protective film, PU special plate | |||
Production capacity (Ten thousand tons/year) | 20 | 20 | 8 |
Coating types | polyester | Silicone modified polyester | High durability polyester | ||
Pencil hardness | ≥ F | ≥ F | ≥ HB | ≥ HB | |
Gloss ( % ) | low | ≤ 40 | ≤ 40 | ≤ 40 | ≤ 40 |
medium | 40-70 | 40-70 | 40-70 | 40-70 | |
high | > 70 | > 70 | > 70 | > 70 | |
T bend | low | ≤ 5T | ≤ 5T | ≤ 5T | ≤ 5T |
medium | ≤ 3T | ≤ 3T | ≤ 3T | ≤ 3T | |
high | ≤ 1T | ≤ 1T | ≤ 1T | ≤ 1T | |
MEK | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 |
Shock response J | low | ≥ 6 | ≥ 6 | ≥ 6 | ≥ 6 |
medium | ≥ 9 | ≥ 9 | ≥ 9 | ≥ 9 | |
high | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 | |
The salt fog resistance ( h ) | ≥ 480 | ≥ 600 | ≥ 720 | ≥ 960 |
